Solutions

You are looking for an energy solution for your building, professional activity or for a particular process and the cost of connection to the network is too high or the cost of energy does not allow the realization of this project, we can offer you solutions:

Photovoltaic, wind or hydraulic system coupled to batteries with back-up by generator
Single-phase, three-phase, 230-400V+N, special voltages SPLIT PHASE or 120V AC, 50-60Hz, everything is possible.

When the energy production is sufficient, it directly supplies the consumers and the surplus is charged in the batteries

When the batteries are full, we can also activate other payloads, for example, cooling or heating units (water heater for domestic hot water, for example).

When the production is too low, it always deliver the energy to the consumers first, but the batteries compensate for the lack of energy, they discharge.

When production is zero (at night, no wind, empty tank) the batteries provide all the energy needed.

When the batteries are empty, the generator or the emergency source takes over and supplies the consumption in addition to charging the batteries (or not, depending on the agreement set with the customer)

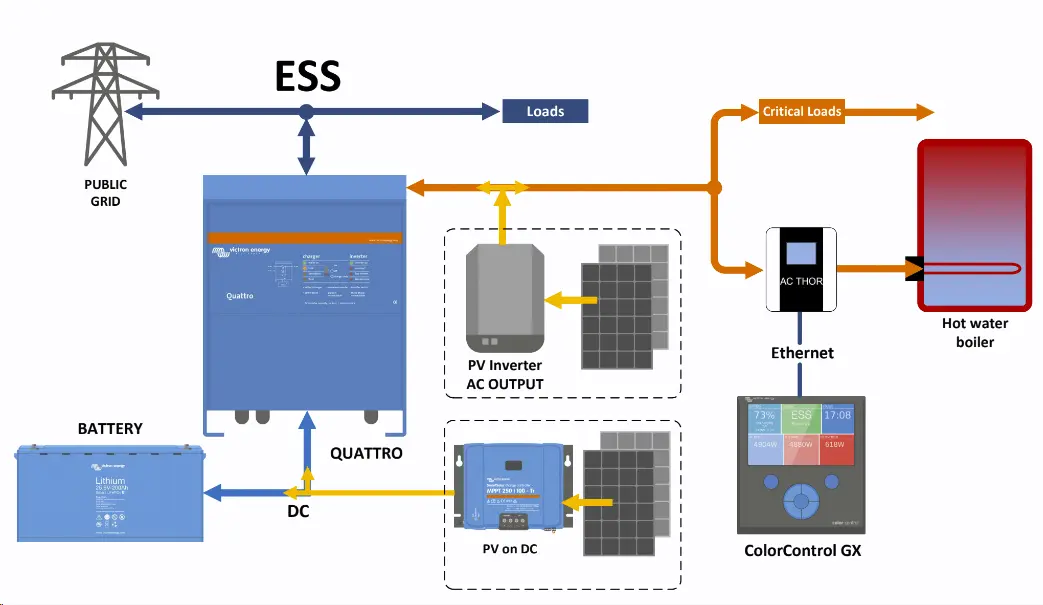

Un système de stockage d’énergie (ESS) est un type spécifique de système d’alimentation qui intègre une connexion au réseau

électrique avec un convertisseur/chargeur Victron, un dispositif GX et un système de batterie. Il stocke l’énergie solaire dans

votre batterie pendant la journée pour l’utiliser plus tard lorsque le soleil s’est couché.

Il permet de décaler l’alimentation électrique dans le temps, de charger avec l’énergie solaire, d’apporter un soutien au réseau et

de réinjecter de l’électricité dans le réseau.

Lorsqu’un système ESS est capable de produire plus d’énergie que sa capacité de consommation et de stockage, il peut vendre

l’excédent au réseau. Et lorsqu’il ne dispose pas d’électricité ou de puissance suffisante, il l’achète automatiquement au réseau.

OFF-GRID SERVICES offers a multitude of on-board solutions for motorhomes, caravans, boats, professional and recreational vehicles.

Battery chargers
DC/DC converters
Embedded monitoring systems
Sensors for : liquid level, sunshine, temperatures,...
Starter battery coupling system with service battery
Wide range of solar chargers and photovoltaic panels adapted to vehicle sizes
Adapted DC protections
DC-AC converters
Transformer for galvanic isolation
Battery monitors
Wide range of AGM, GEL and LIthium batteries and BMS for Lithium batteries..

OFF-GRID SERVICES also offers you assistance with the integration of these solutions, supporting you in adapting the products according to your needs and the possibility of providing you corresponding electrical plans.

Do you have power peak problems with an excessive cost or a significant injection on the network that you want to enhance or that penalizes you?

Connection problems, modification of high voltage cabin, or difficulties to increase the power of your connection?

OFF-GRID SERVICES can increase your power or limit injection into the network, but also provide power to limit your current inrush thanks to the integration of power converters in parallel on your network.

In the event of a high current demand over a short period or momentary injections of renewable energy, we can discharge or load this energy using our storage and power electronics systems.

This solution saves you a multitude of long and expensive procedures and allows you to manage your project on your own without involving the network manager or carrying out major conversion work on your cabins and electrical cabinets.

This solution is also multifunctional since it can also be used as a self-consumption system or BACK UP/UPS.

OFF-GRID SERVICES is also a company active abroad, in Europe, but also in Africa.

With several partners in Congo DRC, Burkina Faso, Sénégal, Burundi, Rwanda, Kenya, …

We can assist you at the logistical and technical level as well as for the supply of your equipment.

We also offer our services to assist you on site for the implementation of your projects.

Whether you are an international organization, a private company, a financial backer looking for a technical solution, we can assist you with the various aspects of your project and provide our address book and our know-how to achieve it in a professional manner.
